Creating a custom clusterer

This example will go over the API for creating a clusterer. We will implement a density-based clusterer (no real thought was put into how useful of a clusterer this is). Given an epsilon > 0, we calculate the number of neighbors a point has within an epsilon ball. We then cluster the dataset into k (num_clusters) sets, aiming to equally divide the number of possible neighbors. Note that two points being in the same cluster tells us nothing about their Euclidean distance.

Creating a custom clusterer

We will start by defining an epsilon neighbor function. Note that zen-mapper expects the clusterer to be an iterator that returns arrays. Each array corresponds to a cluster, and the elements of the array are the indices for the data points in that cluster. Outliers can be removed if necessary.

from collections.abc import Iterator

import matplotlib.pyplot as plt
import networkx as nx
import numpy as np

import zen_mapper as zm


def neighbor_counts(epsilon: float, data: np.ndarray) -> np.ndarray:
    assert epsilon > 0, "Epsilon must be greater than 0."
    if data.size == 0:
        return np.array([])  # return an empty array if given empty data
    n_points = data.shape[0]

    # initialize neighbor count
    neighbor_count = np.zeros(n_points, dtype=int)

    for i in range(n_points):
        distances = np.linalg.norm(data - data[i], axis=1)
        neighbor_count[i] = np.sum(distances <= epsilon) - 1

    return neighbor_count


def get_clusters(
    num_clusters: int, neighbor_counts: np.ndarray
) -> Iterator[np.ndarray]:
    max_neighbors = np.max(neighbor_counts) if np.any(neighbor_counts) else 0

    clusters_per_cluster = max_neighbors // num_clusters
    remainder = max_neighbors % num_clusters

    start = 0
    for i in range(num_clusters):
        end = start + clusters_per_cluster + (1 if i < remainder else 0)
        # distributes the remainder across initial clusters
        indices = np.flatnonzero((neighbor_counts > start) & (neighbor_counts <= end))
        # does not include isolated points

        yield indices  # yields the current cluster
        start = end  # moves the start index for the next cluster


def epsilon_density_clusterer(
    epsilon: float, num_clusters: int, data: np.ndarray
) -> Iterator[np.ndarray]:
    """
    Performs density-based clustering using an epsilon neighborhood.

    Parameters:
    - epsilon: A positive float defining the radius for neighbor counting.
    - k: An integer specifying the number of desired clusters.
    - data: A 2D NumPy array of shape (n_samples, n_features) representing the dataset.

    Returns:
    - An iterator yielding clusters,
    where each cluster is represented as a
    NumPy array of indices.
    """
    # calculate the density counts for the given data
    density_counts = neighbor_counts(epsilon=epsilon, data=data)

    # generate and return clusters based on the density counts
    return get_clusters(num_clusters=num_clusters, neighbor_counts=density_counts)


# make our clusterer passable to zen-mapper:
def clusterer(data):
    return epsilon_density_clusterer(epsilon, num_clusters, data), None


# clustering parameters
epsilon = 0.1
num_clusters = 4

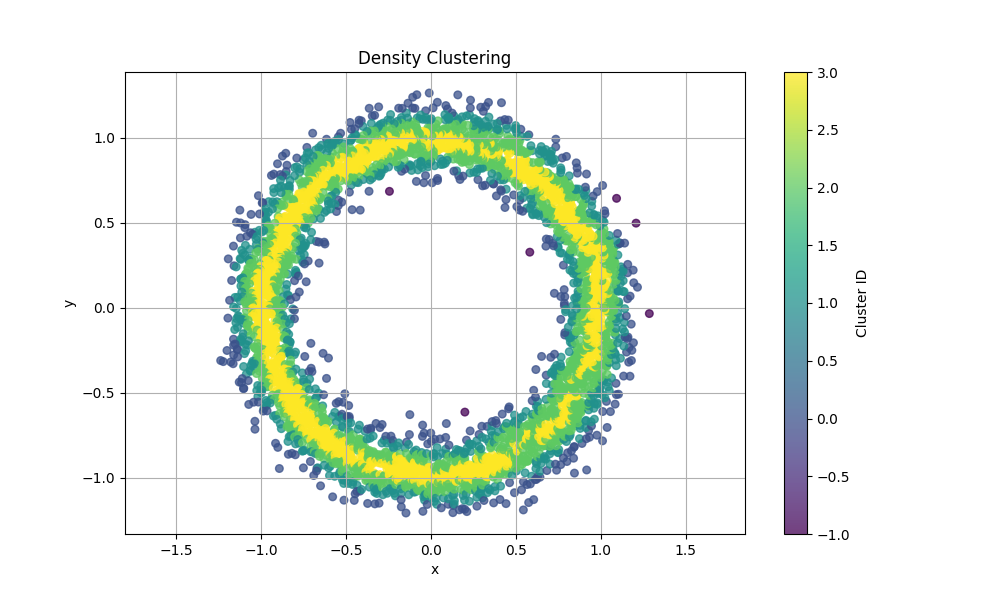

we can then visualize to see if this clusterer acts as we would expect.

# dataset parameters
n_points = 4000
noise_level = 0.1  # Noise level for the radius

# generate angles uniformly between 0 and 2*pi
angles = np.linspace(0, 2 * np.pi, n_points)

# generate radii close to 1 with some noise
radii = 1 + noise_level * np.random.randn(n_points)

# convert polar coordinates to Cartesian coordinates
x = radii * np.cos(angles)
y = radii * np.sin(angles)


# stack x and y into a 2D array for clustering
data = np.column_stack((x, y))

clusters = list(
    epsilon_density_clusterer(epsilon=epsilon, num_clusters=num_clusters, data=data)
)

# create an array for cluster labels
cluster_labels = np.full(data.shape[0], -1)  # use default label for noise points
for cluster_id, indices in enumerate(clusters):
    cluster_labels[indices] = cluster_id

# plotting
plt.figure(figsize=(10, 6))
scatter = plt.scatter(
    data[:, 0], data[:, 1], c=cluster_labels, cmap="viridis", s=30, alpha=0.75
)
plt.colorbar(scatter, label="Cluster ID")
plt.title("Density Clustering")
plt.xlabel("x")
plt.ylabel("y")
plt.axis("equal")
plt.grid(True)
plt.show()

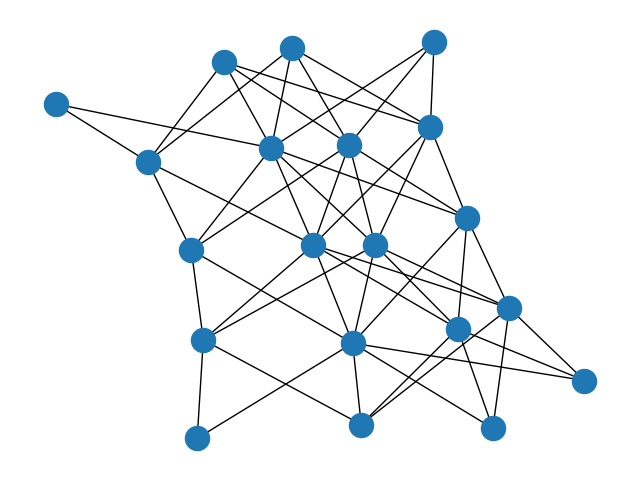

Using with mapper

Now we have a clusterer compatible with zen-mapper.

cover_scheme = zm.Width_Balanced_Cover(n_elements=5, percent_overlap=0.25)
cover = cover_scheme(data)
projection = data[:, 0]

result = zm.mapper(
    data=data,
    projection=projection,
    cover_scheme=cover_scheme,
    clusterer=clusterer,
    dim=1,
)

graph = zm.to_networkx(result.nerve)

# plot the mapper graph
nx.draw_kamada_kawai(graph)
plt.show()

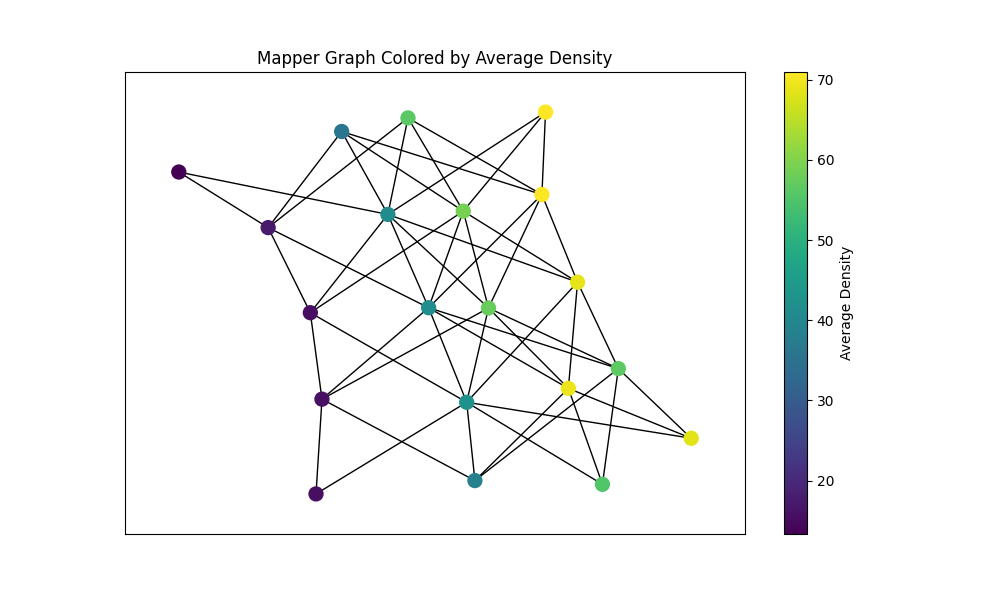

Coloring the nodes

density_counts = neighbor_counts(epsilon=epsilon, data=data)

node_densities = {}

for node_id, indices in enumerate(result.nodes):
    # calculate the average density for the current cluster
    node_densities[node_id] = np.mean(density_counts[indices])

# create a color map based on node densities
node_colors = [node_densities[node] for node in graph.nodes]

# set up figure and axis
fig, ax = plt.subplots(figsize=(10, 6))

# plot the mapper graph with nodes colored by density
pos = nx.kamada_kawai_layout(graph)
sm = nx.draw_networkx_nodes(
    graph,
    pos,
    node_color=node_colors,
    node_size=100,
    ax=ax,
)
nx.draw_networkx_edges(graph, pos)

# add the color bar for average density
cbar = fig.colorbar(sm, ax=ax, label="Average Density")

plt.title("Mapper Graph Colored by Average Density")
plt.show()
